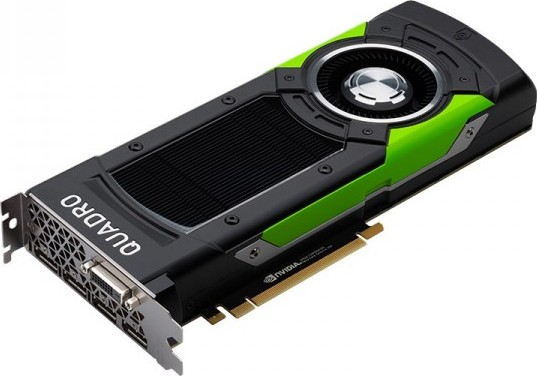

PNY Nvidia Quadro P6000 Video Card, 24 GB GDDR5X, 384-bit, SLI , HDCP 2.2 and HDMI 1.3a support, PCI-Express x16 Gen 3.0, Built in 3x Display Ports, 1x DVI-I (Dual Link) | VCQP6000-PB

Description

PNY Nvidia Quadro P6000 Video Card, 24 GB GDDR5X, 384-bit, SLI , HDCP 2.2 and HDMI 1.3a support, PCI-Express x16 Gen 3.0, Built in 3x Display Ports, 1x DVI-I (Dual Link) | VCQP6000-PB

Based on the NVIDIA Pascal (NVIDIA’s most powerful GPU architecture ever), the Quadro P6000 sets a new performance standard for workstation graphics card. Built using 16nm manufacturing process, the Quadro P6000 features 3840 CUDA Cores – a significant boost over its previous generation counterpart, and staggering 24GB, 384-bit GDDR5X memory, for a new level of performance required for your most demanding creation & design work. And with a host of new display technologies and innovative capabilities, professionals across a range of industries now can create the most complex designs, solve the most challenging visualization problems and experience the creations within the most detailed, lifelike VR environments.

Designs are becoming more complex all the time. Media is becoming richer, combining greater resolutions and complex visual effects. Scientific visualization and compute problems are larger than ever. VR is changing entertainment, design, engineering, architecture, and medicine. And you need to validate designs, rehearse procedures, and visualize problems – interacting with them naturally and at scale.

3D Graphics Architecture

Scalable geometry architecture

Hardware tessellation engine

NVIDIA GigaThread engine with dual copy engines

Shader Model 5.1 (OpenGL 4.5 and DirectX 12)

Up to 32K x 32K texture and render processing

Transparent multisampling and super sampling

16x angle independent anisotropic filtering

32-bit per-component floating point texture filtering and blending

64x full scene antialiasing (FSAA)/128x FSAA in NVIDIA SLI Mode

Decode acceleration for MPEG-2, MPEG-4 Part 2 Advanced Simple Profile, H.264, HEVC,MVC, VC1, DivX (version 3.11 and later), and Flash (10.1 and later)

Dedicated H.264 and HEVC Encoder1

Blu-ray dual-stream hardware acceleration (supporting HD picture-in-picture playback)

NVIDIA GPU Boost (automatically improves GPU engine throughput to maximize application performance)

Advanced Display Features

Support for any combination of four connected displays

Four DisplayPort 1.4 outputs (supporting resolutions such as 3840 x 2160 at 120 Hz and 5120 x 2880 at 60 Hz)

Four DisplayPort 1.4 outputs (supporting resolutions such as 3840 x 2160 at 120 Hz and 5120 x 2880 at 60 Hz)

Internal 400 MHz DAC DVI-D output (analog display up to 2048 x 1536 at 85 Hz)

Available DisplayPort to VGA, DisplayPort to DVI (single-link and dual-link), and DisplayPort to HDMI cables (resolution support based on dongle specifications)

HDR support over DisplayPort 1.4 (SMPTE 2084/2086, BT. 2020) (4K at 60 Hz 10b/12b HEVC Decode, 4K at 60 Hz 10b HEVC Encode)

HDCP 2.2 support over DisplayPort, DVI, and HDMI connectors

12-bit internal display pipeline (hardware support for 12-bit scanout on supported panels, applications, and connection)

NVIDIA 3D Vision technology, 3D DLP, Interleaved, and other 3D stereo format support

Full OpenGL quad buffered stereo support

Underscan/overscan compensation and hardware scaling

NVIDIA nView multi-display technology

Support for large-scale, ultra-high resolution visualization using the NVIDIA SVS platform which includes NVIDIA Mosaic, NVIDIA Sync and NVIDIA Warp/Blend technologies

DisplayPort and HDMI Digital Audio

Support for the following audio modes: Dolby Digital (AC3), DTS 5.1, Multi-channel (7.1) LPCM, Dolby Digital Plus (DD+), and MPEG-2/MPEG-4 AAC

Data rates of 44.1 KHz, 48 KHz, 88.2 KHz, 96 KHz, 176 KHz, and 192 KHz

Word sizes of 16-bit, 20-bit, and 24-bit

NVIDIA Quadro P6000—The World’s Most Powerful Workstation Graphics Card.
The NVIDIA Quadro P6000 is the world’s most advanced professional graphics solution ever created, combining the latest GPU, memory and display technologies that result in unprecedented performance and breakthrough capabilities. Professionals across a range of industries can now create their most complex designs, solve the most challenging visualization problems and experience their creations within the most detailed, lifelike VR environments.
Designs are becoming more complex all the time. Media is becoming richer, combining greater resolutions and complex visual effects. Scientific visualization and compute problems are larger than ever. VR is changing entertainment, design, engineering, architecture, and medicine. And you need to validate designs, rehearse procedures, and visualize problems—interacting with them naturally and at scale.

CUDA Cores

3840

GPU Memory

24GB GDDR5X

Memory Interface

384-bit

Memory Bandwidth

Up to 432 GB/s

Display Connectors

DP 1.4 (4) + DVI-D DL (1) + Stereo

DisplayPort 1.4

Yes

Warranty

3 Years

PNY Part Number

VCQP6000-PB

PNY provides unsurpassed service and commitment to its professional graphics customers offering: 3-year warranty, pre- and post-sales support, dedicated Quadro Field Application engineers and direct tech support hot lines. In addition, PNY delivers a complete solution including the appropriate adapters, cables, brackets, software installation disc and documentation to ensure a quick and successful install.
