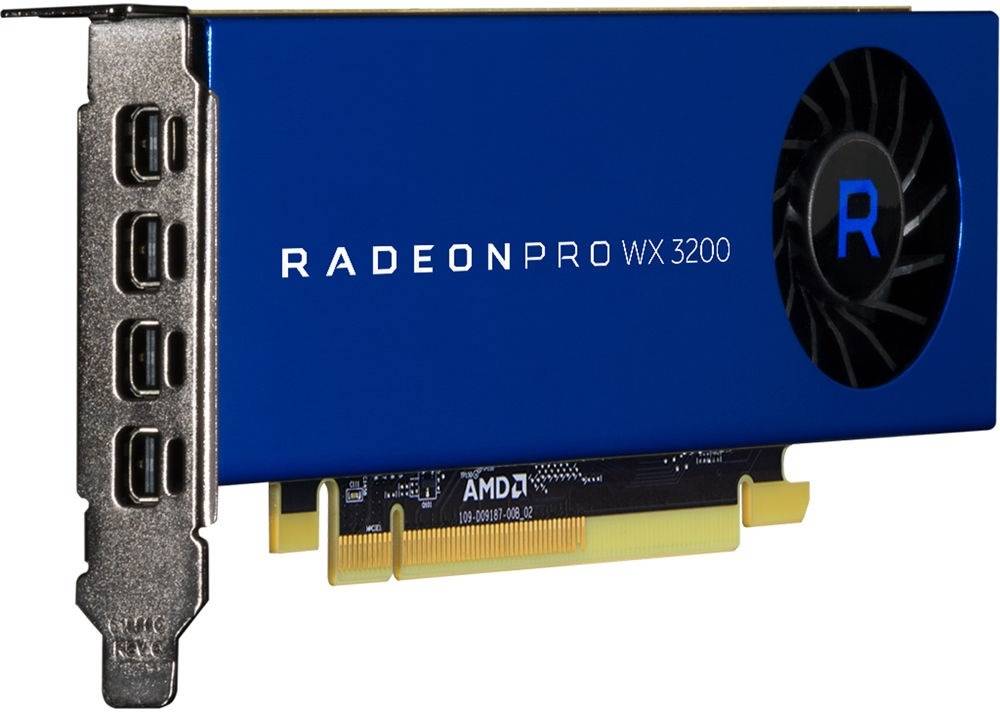

AMD Radeon Pro WX 3200 Graphics Card
Power efficient and compact, the
AMD Radeon Pro WX 3200 Graphics Card
is a low-profile professional workstation graphics card that utilizes AMD 14nm Polaris architecture. It features 640 stream processors and 4GB of GDDR5 VRAM as well as a 128-bit memory interface with 96 GB/s memory bandwidth. Thanks to its compact size, this graphics card allows smaller workstations to take advantage of APIs, such as OpenGL, OpenCL, and Vulkan. This card has four Mini DisplayPort 1.4 ports and can output a 7680 x 4320 maximum resolution to a single display. For cooling, AMD implemented a blower-style fan cooler. The blower-style cooler forces air over the components and exhausts it out through the front of the card, which is ideal for configurations involving tight spacing between components, such as smaller workstations.
Key Features
640 Stream Processors
Polaris Architecture
4GB of GDDR5 VRAM
128-bit Memory Interface
96 GB/s Memory Bandwidth
4 x Mini DisplayPort 1.4 Outputs
7680 x 4320 Maximum Resolution
1.66 TFLOPS Single Precision Performance
Blower-Style Fan Cooler
PCIe 3.0 x16 Interface
The ISV Certified GPU for Unbelievable Desi
gn Performance. At an Unbelievable Price.
The AMD Radeon™ Pro WX 3200 workstation graphics card is AMD’s most cost-effective professional graphics solution and is ISV-certified for professional use with major design applications.
High Quality Graphics Performance for Small Form Factor Workstations.
The AEC and Manufacturing industries have seen an increased demand for quality visuals in recent years. The Radeon™ Pro WX 3200 workstation graphics card is ideal for mainstream CAD engineers who require an ISV-certified graphics solution at an unbelievable price while providing a full set of workstation features for deployments of all sizes. The Radeon™ Pro WX 3200 workstation graphics card has a small form factor that is designed to fit into nearly all desktop workstations. The GPU supports the latest UHD display standards with four Mini-DisplayPort™ 1.4 outputs and offers 4GB of high-speed GDDR5 memory with up to 1.66 TFLOPS of single precision compute performance. It is powered by the enterprise-grade AMD Radeon™ Pro Software for Enterprise driver.
Specifications
GPU Model
AMD Radeon Pro WX 3200
Stream Processors
640
Interface
PCI Express 3.0 x16
Supported APIs
DirectX: 12
OpenGL: 4.6
OpenCL: 2
Vulkan: 1.1
OS Compatibility
Linux
Windows
*As of May, 2021: Check with manufacturer for the most up-to-date compatibility
GPU Memory
4 GB
Memory Interface
GDDR5
Memory Interface Width
128-Bit
Memory Bandwidth
96 GB/s
Display Support
4 x Mini DisplayPort 1.4
Maximum Digital Resolution
7680 x 4320
Power Requirements
Max Power Consumption: 50 W
PCI Power Connectors
None
Height
2.7″ / 68.58 mm
Length
6.6″ / 167.64 mm
GPU Width
Single-Slot
Cooler Type
Blower-Style Fan with Single Fan
